Collimator HOLOSUN HE503CU-GR with green dot

Tube collimator HOLOSUN HE503CU-GR with solar panel technology and automatic warp regulation according to light conditions, which can be turned off. In addition, it is equipped with a switchable pattern in green color and two mountings in the package (low and high) in a proven design for sport shooting or hunting in combination with high-quality workshop processing. A motion sensor is also a matter of course, which wakes up the collimator whenever the situation requires it, and at the same time automatically regulates the brightness of the aiming point. The internal memory saves the collimator setting before turning it off. Parallax free with unlimited eye relief.

Features:

• Tube diameter: 22mm
• Window diameter: 20 mm
• Intentional outline: 2 MOA - dot / 2 MOA dot and 65 MOA pattern
• Intentional warp color: green, 12 brightness levels (2 for night vision)
• Solar panel: Yes
• Power supply: 1x CR2032
• Battery Life: up to 50000 hours (6 brightness level)
• KillFlash: not
• Surface treatment: black, MAO by plasma electrolysis
• Move the warp in one click: 0.5 MOA
• H&V adjustment range: ±50 MOA
• Attachment: fixed mounting – Weaver/Picatinny
• Material: high quality aluminum alloy 6061 T6
• Working temperature: -30°C – 60°C
• Water resistance: IP67
• Weight: 85.02 g
• Dimensions: 6.45 x 3.63 x 4.06 cm
• Tubular construction, waking up from sleep mode by movement, memory storing the last setting before turning off, automatic brightness control, solar panel, switchable intentional pattern.

The package contains: collimator, high 1/3 co-witness and low 8mm mounting, TORX key, battery slot eject tool, spare battery slot, microwipe, instructions

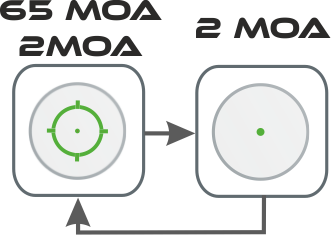

Intentional outline:

• Assembling the collimator:

The HE503CU-GR is equipped with two Picatinny / Weaver compatible mounts. Low mounting with a height of 8mm and high mounting with a 1/3 co-witness view. With the help of these mounts, it is possible to mount hunting shotguns, shotguns and self-loading shotguns.

• Battery Location:

The battery is hidden in the base of the collimator. No more obstacles in the form of large and shapeless battery cases on the body of the collimator.

• Solar panel:

The collimator is equipped with a solar panel that enables automatic adjustment of the collimator outline depending on the light conditions (Solar panel mode). Under sufficient light conditions, the warp is powered purely by solar energy. If the light conditions are not sufficient, the collimator will automatically switch to the CR2032 battery. Solar panel mode can be turned off.

• Control electronics:

Each HOLOSUN collimator is equipped with control electronics with an integrated memory that stores the last setting before switching off. The automatic shutdown function is factory set to 10 minutes. If the collimator is idle, it will automatically turn off. In case of minor movement, the collimator automatically turns on to the original state before turning off. The collimator can also be turned off manually, in this case the motion sensor will not be active.

• Intended for weapons:

Holosun can be used on all types of weapons, from pistols, self-loading machine guns, shotguns to 9.5 x 73 caliber hunting weapons. Weapons such as SA58, AR-15, AK47/74. Guaranteed recoil resistance up to 1000g (9.5 x 73mm / .375 Weatherby).

• Night vision support:

The collimators are compatible with night vision devices. For NV use, the collimator is equipped with two intensity levels that are not visible to the human eye in a normal environment. These are the first and second levels of brightness.

• Parallax free:

The collimators are designed without parallax. The shooter does not have to look in the axis of the optics when shooting, as when shooting with fixed sights. This benefit offers immediate responsiveness. Just cover the target with the warp and press the trigger. This advantage will be appreciated mainly by hunters and shooters in tactical disciplines.

• Lens covers:

Rubber caps are supplied as standard for the 403 and 503C series with the exception of the 503FL model. The elastic cover fits perfectly on the optic and protects it during transport and when storing the weapon in a safe. Removing the cover is very quick.
